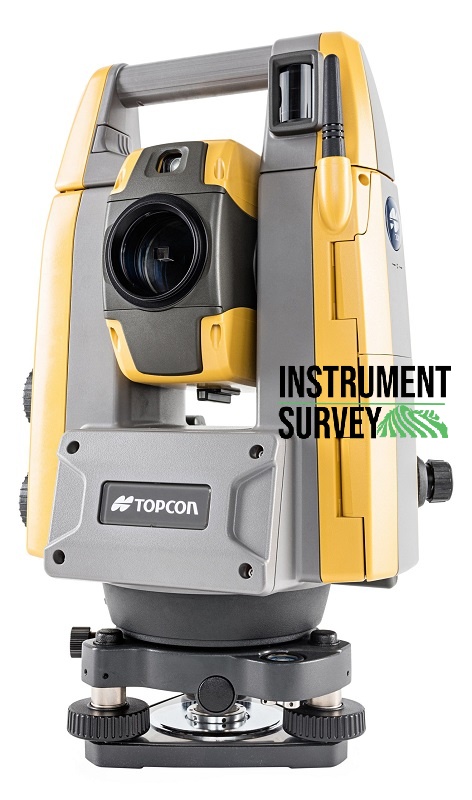

Topcon GT-502 Robotic Total Station

The Topcon GT-502 Robotic Total Station is a high-precision, ultra-compact surveying instrument designed for maximum efficiency in construction, engineering, and infrastructure projects. With its advanced robotic technology, precise 2-second angle accuracy, and long-range measurement capabilities, the GT-502 ensures fast, reliable, and accurate data collection in every field condition.

Advanced Robotic Automation for Single-Operator Efficiency

The GT-502 features ultra-fast robotic motors and UltraTrac prism tracking technology, enabling rapid and precise target acquisition. Its robotic automation allows for single-operator control, improving productivity and reducing labor costs. The system maintains consistent prism tracking even in challenging environments with obstacles or long distances.

High-Precision Measurements with Extended Range

Engineered for accuracy, the GT-502 delivers 2-second angle accuracy and is equipped with an advanced EDM (Electronic Distance Measurement) system. It can measure distances of up to 5,000 meters with a prism and 800 meters in reflectorless mode, providing flexibility for diverse surveying and construction applications.

Durable and Lightweight for Field Use

Built to withstand tough field conditions, the GT-502 is IP65-rated for resistance to dust, water, and harsh weather. Despite its rugged construction, it maintains a lightweight and compact design, ensuring easy transport and setup in any environment.

Seamless Connectivity and Software Integration

The GT-502 supports Bluetooth and LongLink connectivity, enabling efficient remote operation and seamless data transfer. It integrates effortlessly with Topcon’s MAGNET software suite, facilitating real-time collaboration, data management, and streamlined field-to-office workflows.

Key Features:

• Angle Accuracy: 2-second for precise and reliable measurements
• EDM Range: Up to 5,000 meters with a prism and 800 meters in reflectorless mode
• Robotic Tracking: Fast and precise tracking with UltraTrac technology
• LongLink Communication: Remote operation up to 600 meters
• Connectivity: Bluetooth, USB, and serial ports for efficient data transfer
• Environmental Protection: IP65-rated for dust and water resistance
• Battery Life: Long-lasting rechargeable batteries for extended field use
• Compact and Lightweight: Easy to transport and operate in any environment
• Software Integration: Fully compatible with Topcon’s MAGNET software suite

Applications:

• Land Surveying: Boundary, topographic, and control surveys
• Construction Layout: Accurate staking and site layout for buildings and infrastructure
• Infrastructure Development: Ideal for roads, bridges, utilities, and other large-scale projects
• Engineering Surveys: Reliable measurements for industrial and urban environments
• BIM Applications: Capturing precise data for 3D modeling and digital construction workflows

Technical Specifications:

• Angle Measurement Accuracy: 2" (2-second)
• Distance Measurement (Prism Mode): Up to 5,000 meters
• Distance Measurement (Reflectorless Mode): Up to 800 meters
• Robotic Tracking Speed: Ultra-fast and accurate with UltraTrac technology
• Communication Range: Up to 600 meters with LongLink
• Data Storage: Internal memory and external storage options
• Operating Temperature Range: -20°C to +50°C (-4°F to +122°F)
• Weight: Approx. 5.7 kg (12.6 lbs) including battery and tribrach
• Display: High-resolution, intuitive user interface

The Topcon GT-502 Robotic Total Station is a powerful and efficient solution for modern surveying and construction projects. Offering high-precision measurements, fast robotic tracking, and rugged durability, the GT-502 ensures accuracy, reliability, and productivity in any application. Integrated with Topcon’s MAGNET software suite, it supports seamless data workflows and real-time collaboration, making it an essential tool for surveyors, engineers, and construction professionals.
