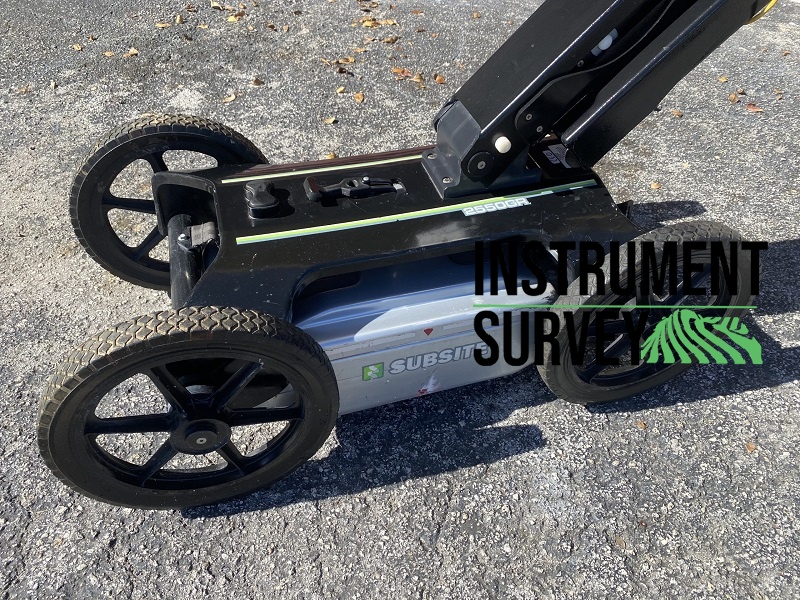

Subsite 2550GR Ground Penetrating Radar

The Subsite 2550GR Ground Penetrating Radar (GPR) is a high-performance utility locating and subsurface mapping solution, designed for professionals in construction, engineering, archaeology, and environmental assessment. Using advanced radar technology, the 2550GR provides accurate, real-time imaging of underground utilities, structures, and anomalies without the need for excavation.

This non-destructive testing (NDT) tool enables users to efficiently detect and map metallic and non-metallic objects, such as pipes, cables, voids, and underground storage tanks. Its intuitive touchscreen interface, high-resolution imaging, and dual-frequency antenna make it an essential tool for accurate subsurface investigations in both urban and rural environments.

Key Features:

✅ Advanced Ground Penetrating Radar – Uses high-frequency electromagnetic waves to detect objects beneath the surface.
✅ Dual-Frequency Antenna – Provides superior depth penetration and high-resolution imaging for precise detection.
✅ Real-Time Data Visualization – Displays subsurface structures instantly on a high-contrast LCD touchscreen.
✅ Multi-Terrain Performance – Works on asphalt, concrete, soil, and rocky surfaces for versatile applications.
✅ Depth Capability – Detects objects up to 10 feet (3 meters) deep, depending on soil conditions.
✅ Easy Data Interpretation – Color-coded subsurface imaging simplifies utility and anomaly identification.
✅ Rugged & Weather-Resistant – Built to withstand harsh environments with IP65-rated durability.
✅ Lightweight & Portable – Ergonomic design with adjustable handle and wheels for effortless maneuverability.
✅ Long Battery Life – Operates for up to 8 hours on a single charge, ensuring extended field use.
✅ Wireless Data Transfer – Exports data to GIS, CAD, and mapping software for post-processing and reporting.

Applications:

• Utility Locating & Mapping – Identify and map underground pipes, cables, and conduits to prevent accidental damage.
• Construction & Engineering – Perform pre-excavation surveys to assess subsurface conditions and avoid costly errors.
• Environmental & Geological Surveys – Detect voids, sinkholes, groundwater levels, and contamination zones.
• Archaeology & Historical Preservation – Locate ancient structures, burial sites, and artifacts with non-invasive scanning.
• Roadway & Pavement Assessment – Evaluate subsurface layers, voids, and structural integrity without damaging surfaces.

The Subsite 2550GR Ground Penetrating Radar is an essential tool for professionals who need fast, accurate, and non-destructive subsurface imaging. Whether you're locating utilities, assessing ground conditions, or conducting archaeological research, the 2550GR delivers precise, reliable results in real-time.

Specifications

Radar & Scanning Technology:

• Technology Type: Ground Penetrating Radar (GPR)
• Antenna Frequency: Dual-frequency (250 MHz & 700 MHz) for deep penetration and high-resolution imaging
• Depth Penetration: Up to 10 feet (3 meters) (varies with soil conditions)
• Scan Resolution: High-definition imaging for precise subsurface mapping
• Radar Output Power: Optimized for accurate detection with minimal interference

Performance & Accuracy:

• Object Detection: Identifies metallic and non-metallic objects, voids, utilities, and subsurface anomalies
• Real-Time Imaging: Live data visualization with color-coded subsurface representation
• Depth Accuracy: ±10% depending on soil conditions and calibration

User Interface & Display:

• Screen Type: High-contrast LCD touchscreen for clear data visualization
• Display Size: 8-inch color screen
• User Controls: Intuitive touchscreen controls with adjustable contrast and zoom features
• Data Interpretation: On-screen depth indicators, color mapping, and adjustable filters for enhanced clarity

Data Storage & Connectivity:

• Internal Storage: 64 GB for scan data and project files
• Data Export Formats: Compatible with GIS, CAD, and mapping software
• Connectivity:
  • USB for data transfer
  • Wi-Fi & Bluetooth for wireless data sharing

Power & Battery:

• Battery Type: Rechargeable Lithium-ion
• Battery Life: Up to 8 hours of continuous operation
• Charging Time: Approx. 4 hours for full charge
• Power Supply: AC/DC charger included

Physical Specifications:

• Dimensions: 1,000 × 550 × 400 mm (adjustable handle height)
• Weight: 23 kg (50.7 lbs) including battery
• Frame Material: Aluminum and reinforced composite for durability
• Wheels: All-terrain rubberized wheels for smooth movement across surfaces

Environmental Conditions:

• Operating Temperature: -10°C to +50°C (14°F to 122°F)
• Storage Temperature: -20°C to +60°C (-4°F to 140°F)
• Ingress Protection: IP65-rated (dustproof and water-resistant)
• Terrain Compatibility: Works on asphalt, concrete, soil, and rocky surfaces

Additional Features:

• Ergonomic Design: Foldable, lightweight, and easy to transport
• Adjustable Handlebar: Height-adjustable for user comfort
• Software Compatibility: Works with industry-standard GIS and CAD platforms
• Reporting & Analysis: Built-in tools for depth slicing, 3D visualization, and data export
